| | | | Part No | Product Description | No. of pole | Current Rated | Unit Price (THB) | | W2R-100-2P-63A | Auto Transfer Switch | 2P | 63A | 2,000.00
1,590.00
ราคาส่งกรุณาติดต่อ | | W2R-100-3P-63A | Auto Transfer Switch | 3P | 63A | 2,050.00
1,620.00
ราคาส่งกรุณาติดต่อ | | W2R-100-4P-63A | Auto Transfer Switch | 4P | 63A | 2,100.00
1,670.00
ราคาส่งกรุณาติดต่อ |
|
|
| CNC | CB DC 2P Circuit Breaker |
|  | Technical: | | | Standards | : IEC60947-2 / CE | | Number of Poles | : 2 | | Rated Operational Voltage | : 500Vdc | | Rated Short-Circuit Capacity (Icn) | : 10 kA | | Rated Operational Current (In) | : 80 A | | | | | | | | | | | | | | | | | | |
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | YCB1-125 DC-80A | CB DC 2P Miniature Circuit Breaker | ** = 80A | 600.00
450.00
ราคาส่งกรุณาติดต่อ |
|
|
| CNC | CB DC 2P Circuit Breaker |
|  | Technical: | | | Standards | : IEC60947-2 / CE | | Number of Poles | : 2 | | Rated Operational Voltage | : 500Vdc | | Rated Short-Circuit Capacity (Icn) | : 10 kA | | Rated Operational Current (In) | : 125 A | | | | | | | | | | | | | | | | | | |
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | YCB1-125 DC-125A | CB DC 2P Miniature Circuit Breaker | ** = 125A | 600.00
480.00
ราคาส่งกรุณาติดต่อ |
|
|
 | ABB 1P Circuit Breaker |
|  | Technical: | | | Standards | : IEC/EN 60898-1 | | Number of Poles | : 1 | | Tripping Characteristic | : C | | Rated Operational Voltage | : acc. to IEC 60898-1 230 / 400VAC | | Power Loss | : 2.5 W at Rated Operating
Conditions per Pole 2.5 W | | Rated Insulation Voltage (Ui) | : acc. to IEC/EN 60664-1 440 V | | Rated Frequency (f) | : 50 Hz
60 Hz | | Rated Short-Circuit Capacity (Icn) | : 230 / 400 V AC) 6 kA | | Energy Limiting Class | : 3 | | Overvoltage Category | : III | | Pollution Degree | : 2 | | Degree of Protection | : IP20 | | Electrical Endurance | : 20000 AC cycle | | Mechanical Endurance (Nendu) | : 20000 cycle | | Dielectric Test Voltage | : 50 / 60 Hz, 1 min: 2 kV |
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | SH201-C** | 1P AC Miniature Circuit Breaker | ** = 16A, 20A | 236.00
140.00
ราคาส่งกรุณาติดต่อ |
|
|

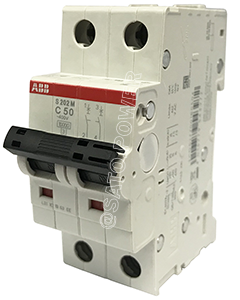

| ABB 2P Circuit Breaker |
|  | Technical: | | | Standards | : IEC/EN 60898-1
IEC/EN 60947-2 | | Number of Poles | : 2 | | Tripping Characteristic | : C | | Rated Operational Voltage | : acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 440 V AC | | Power Loss | : 3.6 W at Rated Operating
Conditions per Pole 2.5 W | | Rated Insulation Voltage (Ui) | : acc. to IEC/EN 60664-1 440 V | | Rated Frequency (f) | : 50 Hz
60 Hz | | Rated Short-Circuit Capacity (Icn) | : (400 V AC) 10 kA | | Energy Limiting Class | : 3 | | Overvoltage Category | : III | | Pollution Degree | : 3 | | Degree of Protection | : IP20 | | Electrical Endurance | : 20000 AC cycle | | Mechanical Endurance (Nendu) | : 20000 cycle | | Dielectric Test Voltage | : 50 / 60 Hz, 1 min: 2 kV |
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | SH202M-C** | 2P AC Miniature Circuit Breaker | ** = 16A, 20A, 32A | 1,535.00
550.00
ราคาส่งกรุณาติดต่อ |
|
|

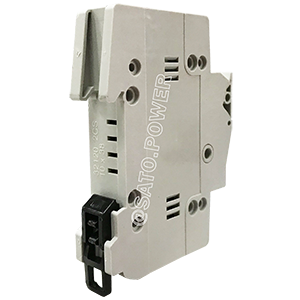

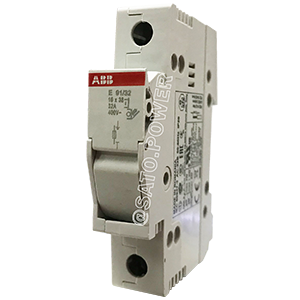

| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | E91/32 | 1P Fuse Holder | n/A | 200.00
120.00
ราคาส่งกรุณาติดต่อ |
|
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | FB1-63-1P-*** | 1P DC Miniature Circuit Breaker | *** = 10A, 16A, 20A | 200.00
120.00
ราคาส่งกรุณาติดต่อ |
|
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | FB1-63-2P-*** | 2P DC Miniature Circuit Breaker | *** = 10A, 32A | 250.00
180.00
ราคาส่งกรุณาติดต่อ |
|
|
| | | | Part No | Product Description | Voltage Rate | Unit Price (THB) | | BF1-PV1000 | DC Surge Protection | 1000VDC | 750.00
500.00
ราคาส่งกรุณาติดต่อ |
|
|
 | 2P DC -- Surge Protection |
| | |
| | | Part No | Product Description | Voltage Rate | Unit Price (THB) | | SM-RY2-PV | DC Surge Protection | 1000V | 550.00
450.00
ราคาส่งกรุณาติดต่อ |
|
|
|  |

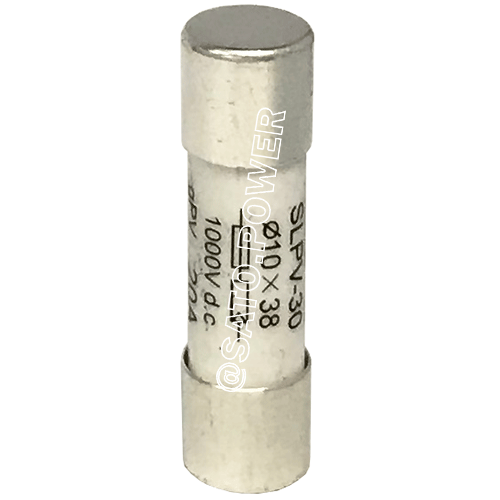

Application :
This gPV fuse is designed to protect PV strings in solar PV combiner box,it has ampers of 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A,15A, 20A, 25A, 30A. Rated breaking capacity up to 40KA.And have obtained CE,RoHS and TUV.It also has types of bolt fixing and PCB fixing.
GPV Fuse
Usage: Low Voltage
Safety Standard: IEC
Breaking Capacity: High
Type: gPV fuse
Certificate: TUV,CE,RoHS
Size: 10*38mm |
| | | | Part No | Product Description | Ampere Rate | Size (mm) | Unit Price (THB) | | CTSLPV-30 | Solar Fuse 1000Vdc | 1000Vdc | 10x38 | 30.00
ราคาส่งกรุณาติดต่อ |
|
|
|   |

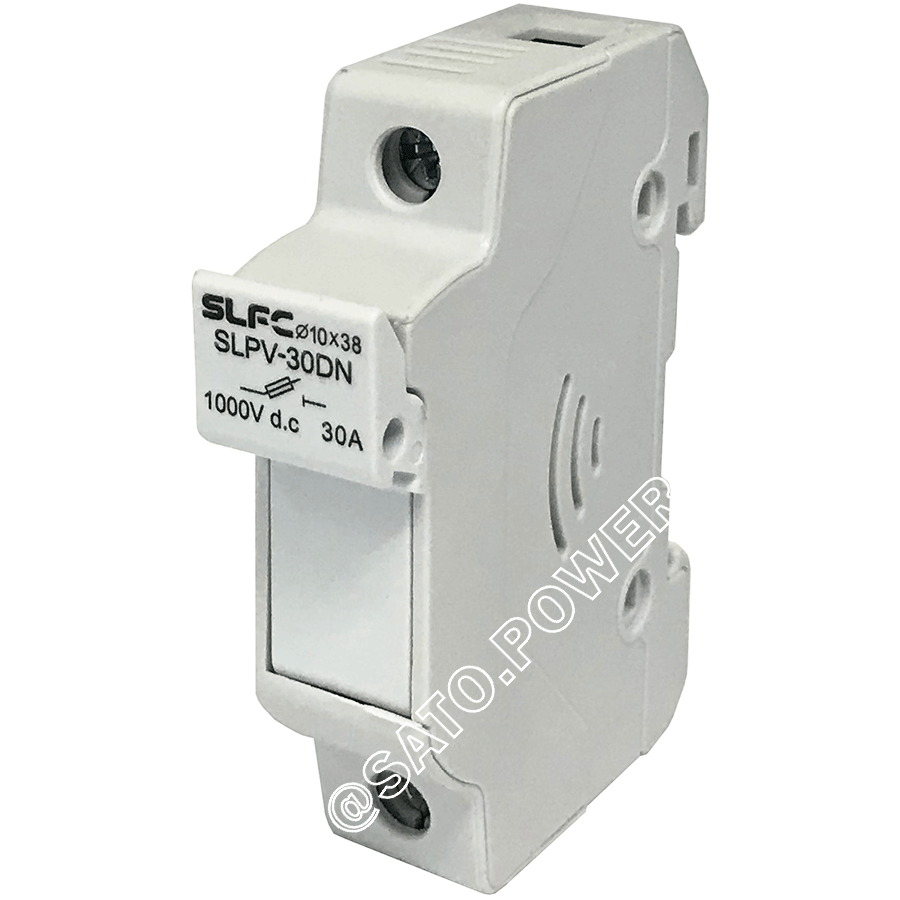

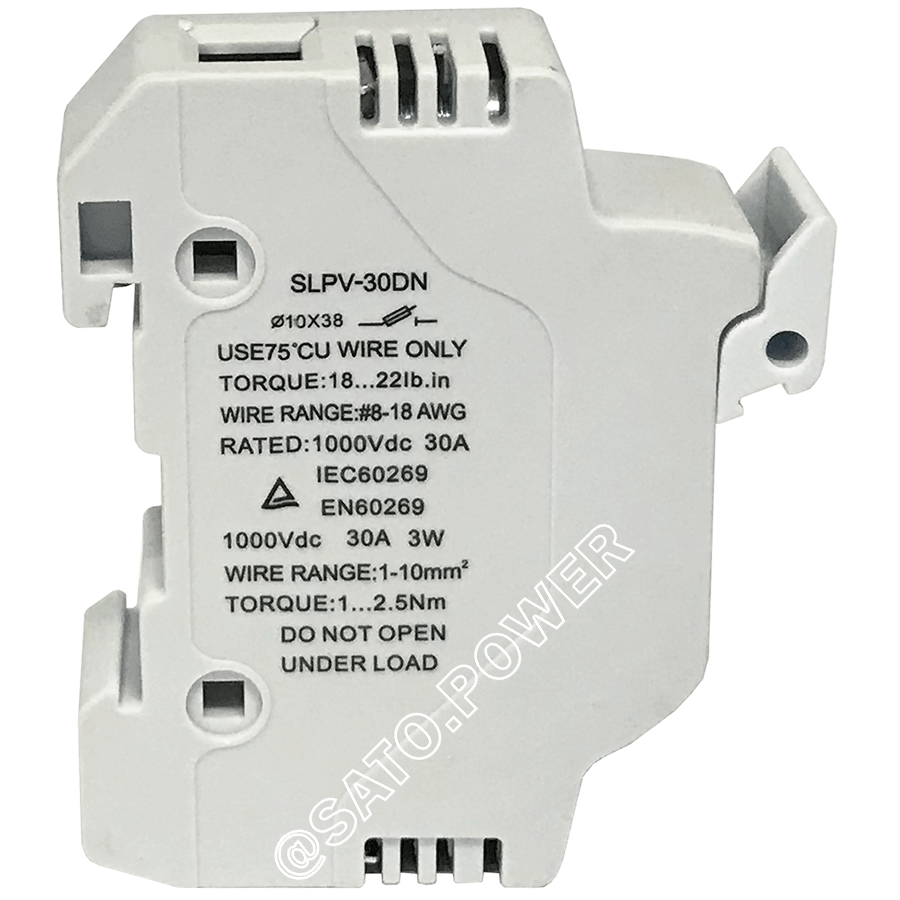

Application :
This solar fuse holder designed to match solar fuse 10mm*38mm.The pv fuse holder offers 1000VDC 30A,7.5*35 mm DIN rail mountable.They are available in 1, 2, 3 and 4 pole configurations or can be connected together with an assembly kit. Solar Fuse Holder
Usage: Low Voltage Safety Standards: IEC Breaking Capacity: High Rated voltage: 1000V DC Certificate: CE.TUV.RoHS Matched fuse : 10X38mm |
| | | | Part No | Product Description | Voltage Rate | Fuse Size (mm) | Unit Price (THB) | | SLPV-30DN-1P | ตลับฟิวส์ DC (DC Fuse Base) | 1000Vdc | 10x38 | 70.00
ราคาส่งกรุณาติดต่อ |
|
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | RFB1-63-1P-*** | 1P AC Miniature Circuit Breaker | *** = 16A, 20A, 32A | 120.00
80.00
ราคาส่งกรุณาติดต่อ |
|
|
| | | | Part No | Product Description | Current Rate | Unit Price (THB) | | RFB1-63-1P-*** | 1P AC Miniature Circuit Breaker | *** = 32A, 63A | 200.00
160.00
ราคาส่งกรุณาติดต่อ |
|
|

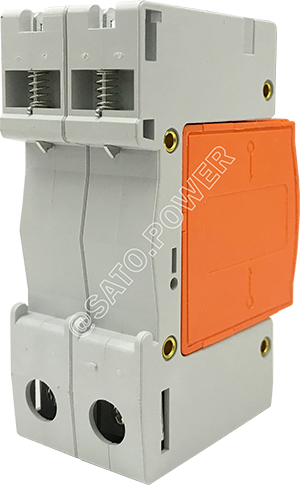

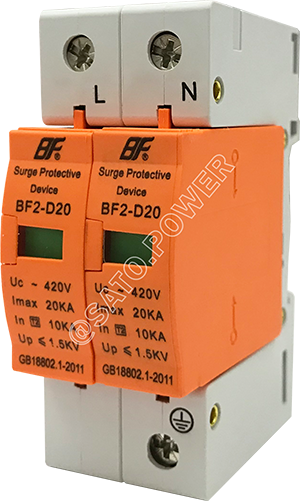

| | | | Part No | Product Description | Voltage Rate | Unit Price (THB) | | BF2-D20 | AC Surge Protection | 420V | 550.00
450.00
ราคาส่งกรุณาติดต่อ |
|
|
| 2P AC∼ Surge Protection |
|
|
| | Part No | Product Description | Voltage Rate | Unit Price (THB) | | SM-RY1-40/1 | AC Surge Protection 2P | 385V | 550.00
480.00
ราคาส่งกรุณาติดต่อ |
|
|
| 3P AC∼ Surge Protection |
|
|
| | Part No | Product Description | Voltage Rate | Unit Price (THB) | | SM-RY1-C40 | AC Surge Protection 3P | 420V | 850.00
700.00
ราคาส่งกรุณาติดต่อ |
|
|
| 4P AC∼ Surge Protection |
|
|
| | Part No | Product Description | Voltage Rate | Unit Price (THB) | | SM-RY1-D20 | AC Surge Protection 4P | 420V | 990.00
850.00
ราคาส่งกรุณาติดต่อ |
|
|
| 3P AC∼ Surge Protection |
|
|
| | Part No | Product Description | Voltage Rate | Unit Price (THB) | | LKX-C40 | AC Surge Protection 3P | 420V | 800.00
600.00
ราคาส่งกรุณาติดต่อ |
|
|
| | | | Part No | Product Description | No. of pole | Current Rated | Unit Price (THB) | | SMQ2-63/2P-63A | Auto Transfer Switch | 2P | 63A | 1,500.00
960.00
ราคาส่งกรุณาติดต่อ | | SMQ2-63/3P-63A | Auto Transfer Switch | 3P | 63A | 0.00
0.00
ราคาส่งกรุณาติดต่อ | | SMQ2-63/4P-63A | Auto Transfer Switch | 4P | 63A | 3,500.00
2,560.00
ราคาส่งกรุณาติดต่อ |
|
|
